Flanged Bearing does not sit flush

X-Carve Assembly
1

This step and the next step for Zaria assembly.

If you follow the steps exactly then the maker slide will not be flush with the zaxis motor plate.

If I loosen the 2 bolts around the bearing and tight down the two bolts that attach the plate and slide, the bearing will not sit flush.

Is that supposed to happen? I see a similar post from 2015, but no solution was presented.

If it was designed this way on purpose let me know. Otherwise I can dremel out a little bit of the maker slide so everything can be flush.

Do the xcarve support staff watch these post or should I be emailing support?

2

Pictures?

4

353304B1-57AD-4269-88EE-132EB15A1B66
353304B1-57AD-4269-88EE-132EB15A1B661927×1716 565 KB
CE53302D-37AF-473F-A38E-13284F6F24CD
CE53302D-37AF-473F-A38E-13284F6F24CD1574×2100 405 KB
9078E410-72E0-4A2A-BEF0-DC0A0F991CF9
9078E410-72E0-4A2A-BEF0-DC0A0F991CF92528×3434 1.67 MB

THIRD pic I don’t have any of the bolts in, but it sits flush.

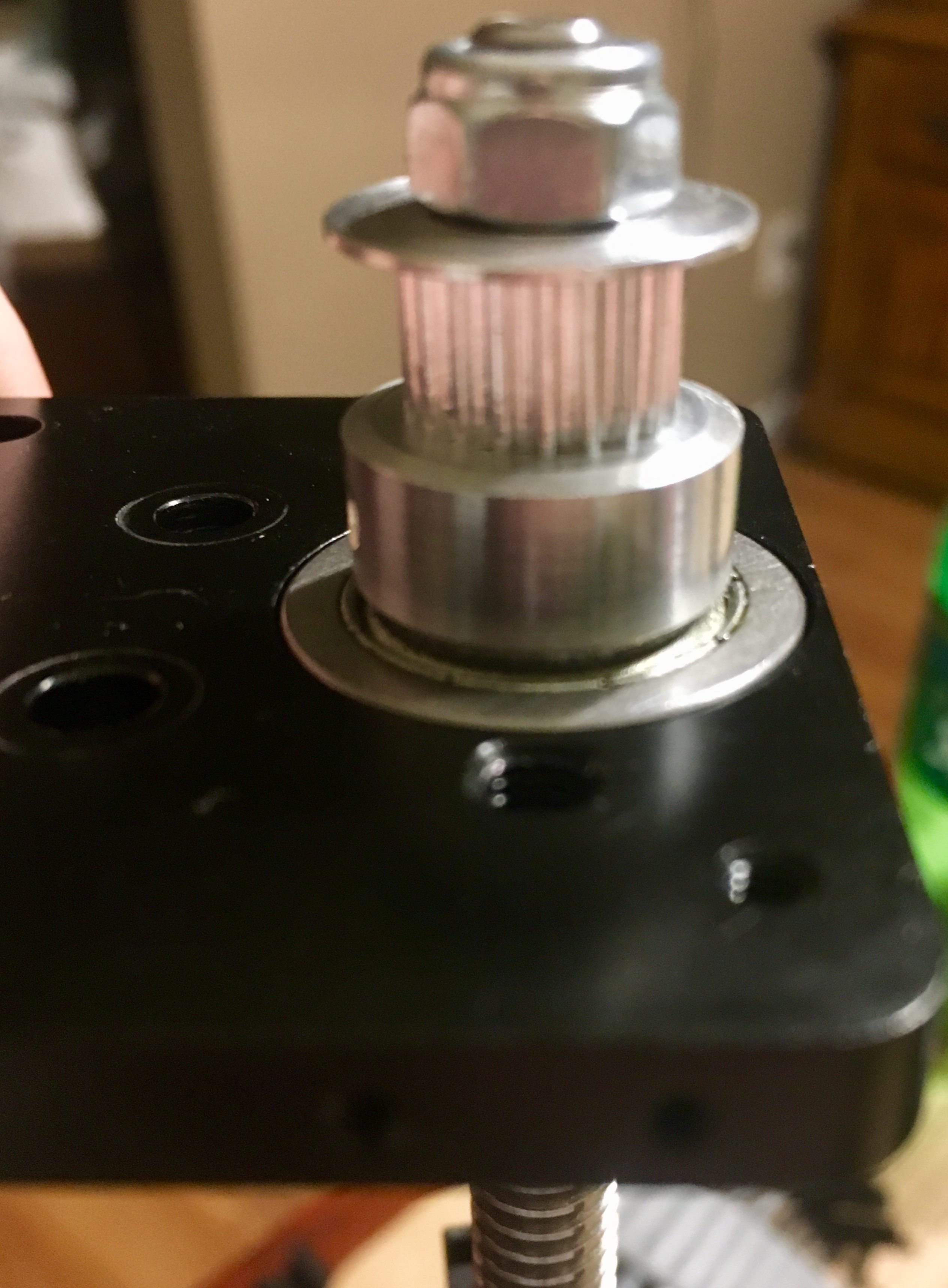

Second pic I have the maker slide bolted on and you see the top of the flanged bearing is not flush.

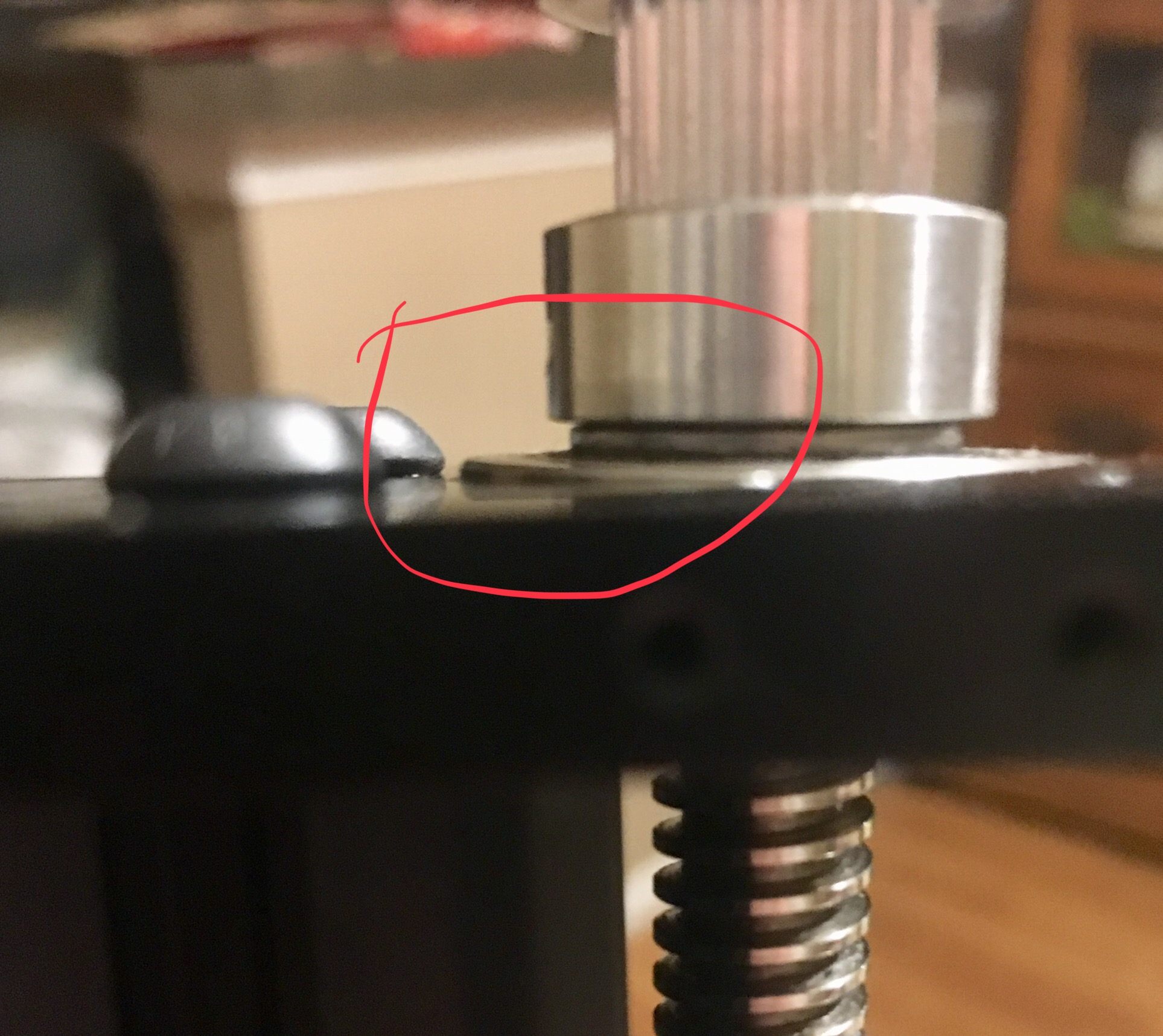

FIRST pic you can see why it is happening; maker slide and flange over lap a bit and the flange is too deep.

IF I bolt the flange on so that it cannot move, then the maker slide will not be flush with the motor plate, but the bearing will be flush

5

Jesus F Christ

Thanks.

He is right. I have the maker slide on the wrong side.
