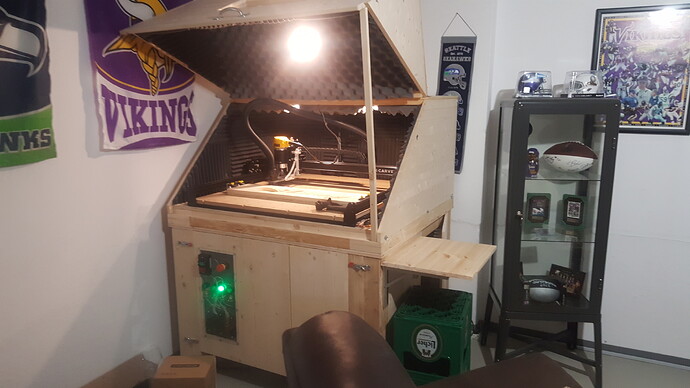

The top front section flips up, I’ve included a pic of it with the hatch open. My dust extraction system is working like a dream, I’ve been carving solidly for about 4 days now, and I can’t see any dust on the foam at all. I highly recommend that dust extraction setup Inventables is selling.
I meant what if you need to get to the back of the machine. Does the whole top come off for working on areas not in the front where you have that door. Or if you have it so you can slide the machine out that would work too.
Yeah, I can just unplug the cables and slide it out.
well I am finally close to the end, I now have an enclosure for the X carve that is located in the basement. The main challenge I had in building this was making something to hold up but also something that can move. Unlike most of you guys I move every 3 years (+/-) so I needed something that would collapse so it can be packed. So pretty much build this in a way that everything comes apart in some way. The four walls of the base come apart and can be stacked on top of each other, the top box can pretty much do the same, the torsion box lifts off of the base, basically everything comes apart. the only thing I have left to do is make the cut outs for all the tools and bits and get some pistons to hold up the door. I made a insulated compartment for the shop vac in the bottom section along with some storage space for the Xcarve boxes I need for when I move.
11 Likes
I have had the x-carve about a year, but due to health not really had a chance to use it. I recently made the enclosure and thought I would share it here as my take on this seems a little different.
The x-carve is in a room on an old desk. Noise and dust were main factors in this design, also a desire to do things simply and cheaply.

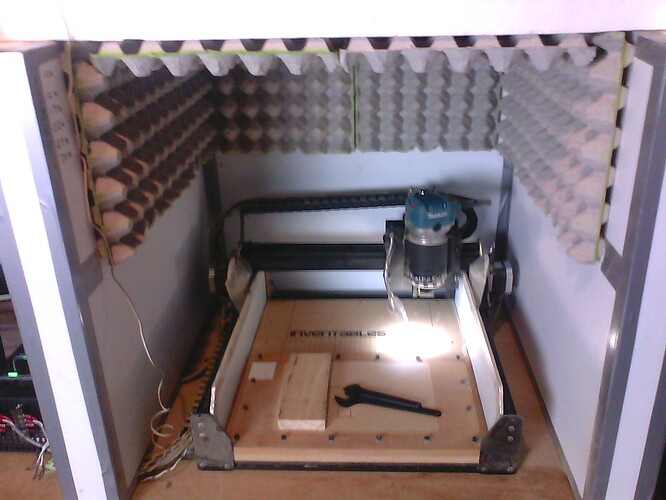

The enclosure is made from common 3" thick styrene blocks cut with a home made hot wire cutter, held together with wood kebab sticks and glue. The styrene blocks were covered with corflute sheet held on by glue and sewing pins, finally all corners were taped with duct tape. The window is 8mm thick glass (glass sliding door from an old sideboard). I put egg cartons in the top half to defuse sound (I thought it may bounce around inside the box).
I picked up every thing free (one mans junk…). I just paid for the glue, duct tape. kebab sticks and sewing pins.
Keeping things simple, I decided to mount corflute to the rails with valcro tape, this allows movement if there is contact and also easy removal for cleaning.
The motor and belt pulley dust covers are x-carve component packaging attached to the plate by a bulldog clip, lol, simple but effective.
The entire enclosure if very light and can be picked up to access the machine for maintenance and upgrades. Next upgrades are air cooling and a mount for the dial indicator (I want to get the bed a bit more level).
6 Likes
do you notice the difference with the egg boxes? Its something i thought about but haven’t done.
It is quiet, but I am unsure how much of that is due to the egg cartons, or the 3" styrene box.
This, my friend, is beautiful!
Great job!
Thank you DamnitJim, while making brackets for a dial indicator, despite it being nice and quiet, I found 3 things:
- It heats up in there, so a fan/vent is required I think.
- Messy, I am making a dust boot next. I plan on milling both wood and aluminum and think a dust boot will be required when doing wood ( I have an air cooler hose for alu, just not set up yet).
- It is fun tinkering and learning.
I love how inventive everyone is getting when putting there x-carve in there apartment
